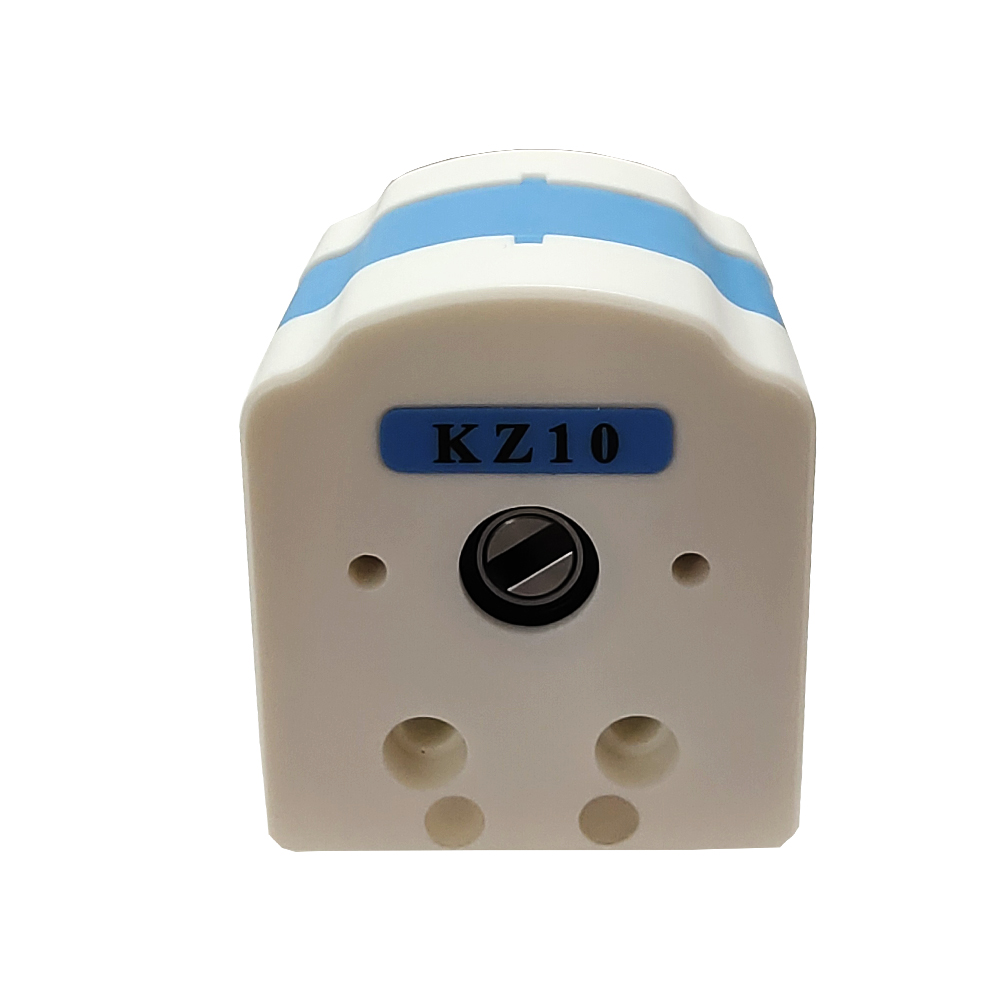

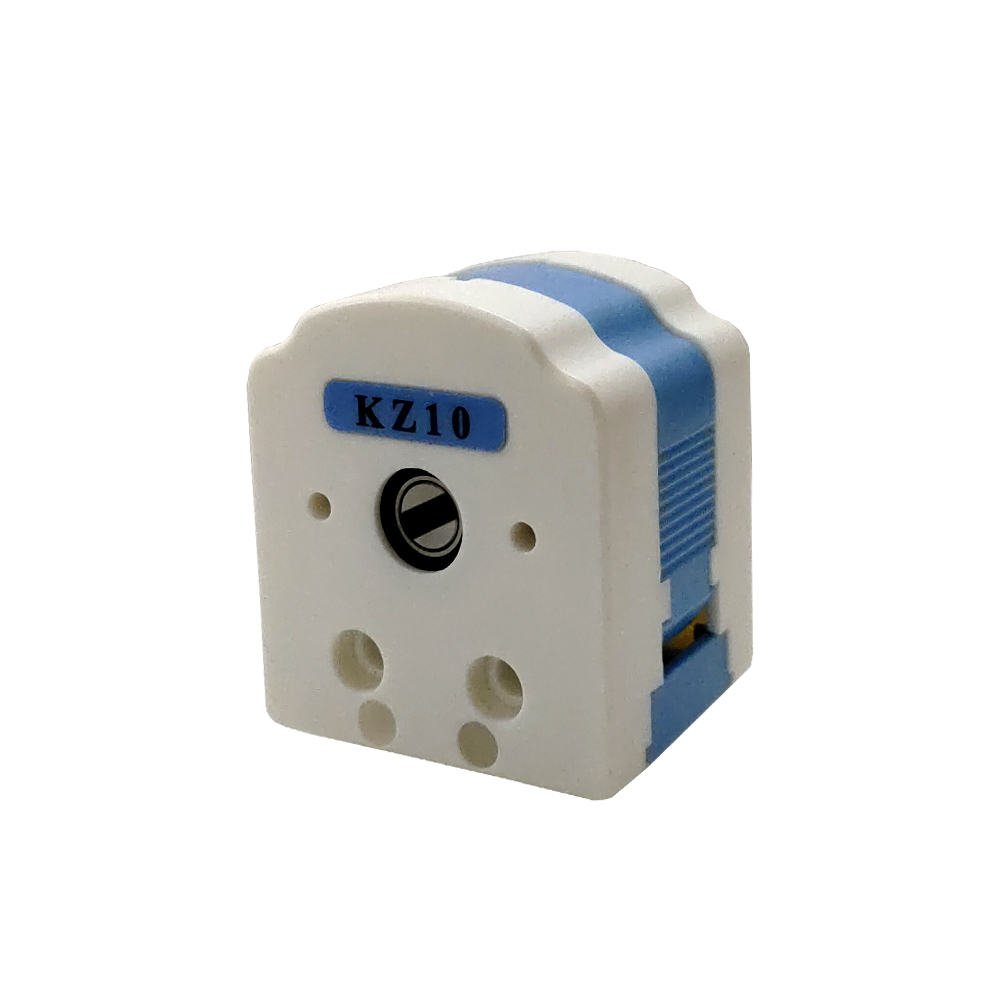

KZ10/15 pump head

KZ10/KZ15 series pump head has compact structure and small volume. It is suitable for supporting use of OEM products and can be cascaded with multiple pump heads to save equipment space. The quick-fit structure is convenient and quick to replace the hose.

Flow range：0.002-184ml/min

Maximum number of channels：Single pump head with 2 channels, and multiple pump heads can be connected in series

Introduction

Parameter

Guide

video

KZ10/KZ15 series pump head has compact structure and small volume.
It is suitable for supporting use of OEM products and can be cascaded with multiple pump heads to save equipment space.

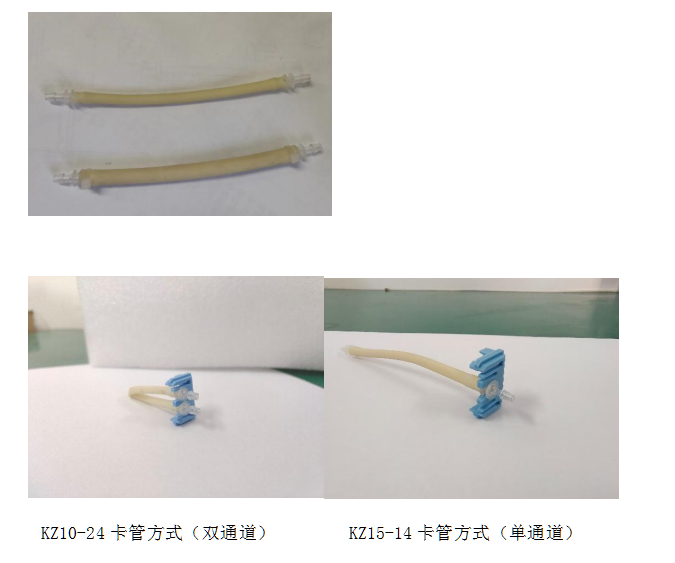

The quick-fit structure is convenient and quick to replace the hose.
Product model Spindle type Number of channels Number of rollers Speed range（rpm） Applicable hose specification Maximum reference flow of single channel（ml/min） weight（g）
KZ10-14C the major axis 1 4 ≤450 bore size≤3.17mm 150 90
KZ10-24C 2 wall thickness0.86-1mm
KZ10-14D minor axis 1
KZ10-24D 2
KZ15-14C the major axis 1 13#、14#、19#、16# 184
KZ15-14D minor axis
